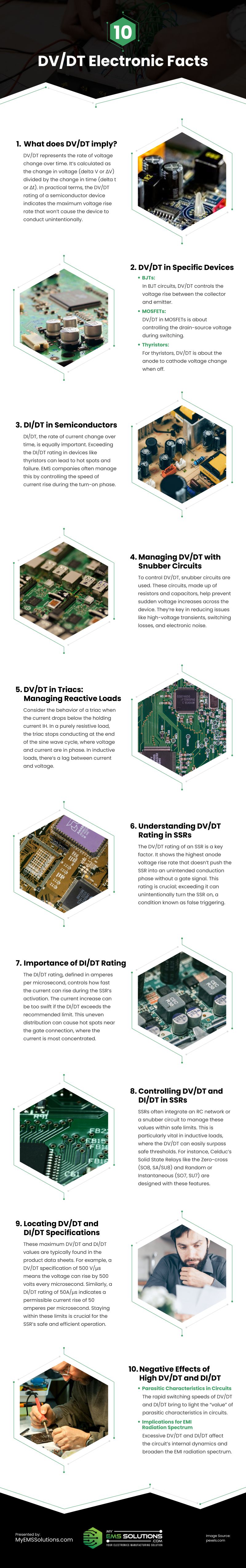

10 DV/DT Electronic Facts Infographic

DV/DT in electronics offers a deeper understanding of power semiconductor devices, which function like fast-acting switches, rapidly turning on and off thousands of times per second. This swift action results in dramatic changes in voltage and current, measured by DV/DT and DI/DT, respectively. DV/DT represents the rate of voltage change over time, calculated as the change in voltage (ΔV) divided by the change in time (Δt). Essentially, a semiconductor device’s DV/DT rating indicates the maximum allowable rate of voltage rise that won’t cause the device to conduct unintentionally. Similarly, DI/DT, the rate of current change over time, is crucial in semiconductor performance. Exceeding the DI/DT rating in devices like thyristors can result in hot spots and device failure. EMS companies manage this by controlling the current rise speed during the turn-on phase, ensuring the current distribution is even and preventing damage. The DV/DT rating of solid-state relays (SSRs) is critical. It specifies the highest rate at which the anode voltage can rise without triggering unintended conduction. Exceeding this rating can lead to false triggering of the SSR. The DI/DT rating, defined in amperes per microsecond, regulates the current rate during SSR activation. SSRs often incorporate an RC network or snubber circuit to keep DV/DT and DI/DT within safe limits. This is particularly important for inductive loads, where the DV/DT can exceed safe thresholds. The maximum DV/DT and DI/DT values are typically specified in product data sheets. For instance, a DV/DT specification of 500 V/μs means the voltage can rise by 500 volts per microsecond. Similarly, a DI/DT rating of 50A/μs indicates a permissible current rise of 50 amperes per microsecond. High DV/DT and DI/DT can have negative effects, such as highlighting parasitic characteristics in circuits and broadening the EMI radiation spectrum. Overall, effectively managing DV/DT and DI/DT rates is crucial for the performance and longevity of electronic systems. By doing so, EMS solutions providers can ensure optimal device functionality and durability.
