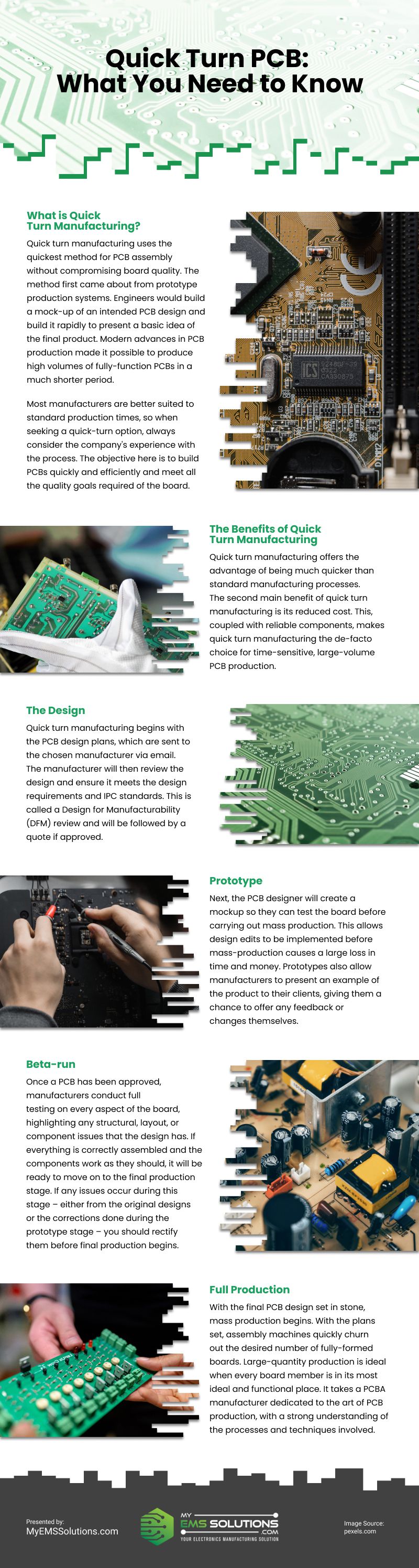

Quick Turn PCB: What You Need to Know Infographic

PCBs, or printed circuit boards, are an essential component of contemporary electronics. Many of the everyday devices we use wouldn’t work without them. The industry has made efforts to speed up PCB production because of the high turnover that comes with these goods.

Quick Turn Manufacturing Defined

In quick turn manufacturing, PCB assembly is done quickly without sacrificing board quality. You may use rapid turn manufacturing to complete big orders in as little as seven days, and it is the perfect solution for swiftly creating multiple boards with minimum error.

To give a quick overview of the finished product, engineers would quickly construct a mock-up of a proposed PCB design. Manufacturers accepted the approach since a prototype doesn’t need to be as accurate and thoroughly tested as the finished product.

Over time, producers and assemblers learned they might improve prototype building accuracy by employing contemporary PCB fabrication innovations. Applying strict guidelines to these processes allowed them to assemble the final PCB design under usable working circumstances. With quick-turn PCB production, they can finish the average fabrication process in 1 to 7 days, which is half as long as the conventional techniques. Several factors influence the timeline, from board dimensions to lamination. A skilled and knowledgeable assembler can adjust these parts to a tight turnaround timeframe. This is ideal for manufacturers who have to construct items on a tight timeframe to keep development costs down and shareholders satisfied. Building PCBs quickly and effectively while achieving all the board’s quality requirements is the goal.

Quick Turn Manufacturing Advantages

Quick-turn production has the benefit of being speedier than traditional manufacturing techniques by reducing processing and assembly times. Cost savings are the second major advantage. The cost-effectiveness of shorter manufacturing times is greater than that of longer ones. This makes quick turn manufacturing the de facto option for time-sensitive, high-volume PCB fabrication, together with reliable components.

The Style

The PCB design blueprints, which are provided to the selected manufacturer in a Gerber file format, are the first step in quick-turn manufacturing. The Gerber industry standard is emailed to the makers. The manufacturer will then examine the design to make sure it complies with IPC standards and design specifications. A quote will be provided after this Design for Manufacturability (DFM) review if it is accepted.

Prototype

The PCB designer will then construct a mockup so they can test the board before going into mass production. Manufacturers can detect potential mistakes or design changes in advance by testing component arrangement and overall design before production. This streamlines the process before it even starts by enabling design changes to be made before mass production.

Prototypes enable producers to show a sample of the product to their customers, allowing them an opportunity to provide any comments or adjustments themselves. This keeps both the customer and the manufacturer informed as the PCBs are being built. It aids producers in getting rid of any future chances for mistakes or misunderstandings.

Beta-run

Designers produce a batch of beta boards using the acceptable specs after the prototype has been approved for testing. A batch typically comprises between a few hundred and several thousand boards, all constructed to mimic the finished item accurately.

At this stage, manufacturers thoroughly test the entire board, identifying any structural, organizational, or component flaws. It will be prepared to proceed to the final production stage when everything has been assembled properly and all the components are functioning as they should.

Finished Product

Once the PCB design is finalized, mass production can start. Once the blueprints are established, assembly lines swiftly produce the required number of fully formed boards. They can do it as quickly as the production equipment will allow.

These procedures will require other types of manufacturing, but what makes quick-turn manufacturing so useful is the speed at which skilled workers complete them. Speeding up a time-consuming and precise sector like PCB fabrication demands a PCBA manufacturer committed to the craft and knowledgeable about the procedures and techniques used. So it’s crucial to look for businesses with a solid track record.

Many circumstances force businesses to look for more efficient and affordable production methods. Fortunately, the PCB manufacturing sector has experienced incredible technological and methodological advancements that benefit clients. The best option when seeking a rapid approach to purchasing PCBs is quick-turn PCB fabrication.

source: https://www.myemssolutions.com/quick-turn-pcb-what-you-need-to-know/
